Manufacturer: Tripp Lite
Mfg Number: P166-001-A
SKU:
UPC: 037332141033
Condition:
New

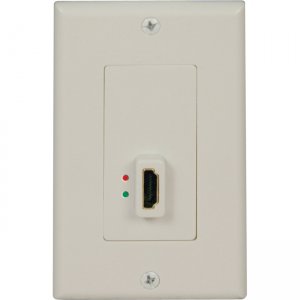

Tripp Lite's P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports video resolutions up to 1080p, and a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.
Interfaces/Ports |
---|
Number of HDMI Ports | 2 |
---|
General Information |
---|
Product Type | Faceplate |
---|
Brand Name | Tripp Lite |
---|
Manufacturer | Tripp Lite |
---|
Product Model | P166-001-A |
---|
Product Name | HDMI Display-side Wallplate with Active Signal Booster (F/F) |
---|
Manufacturer Part Number | P166-001-A |
---|
Manufacturer Website Address | http://www.tripplite.com |
---|
Miscellaneous |
---|
Green Compliant | Yes |
---|
Green Compliance Certificate/Authority | RoHS |
---|
Package Contents | - HDMI Display-side Wallplate
- Signal Booster
|
---|
Physical Characteristics |
---|
Color | White |
---|
Technical Information |
---|
Total Number of Sockets | 2 |
---|
Mount Location | Wall Mount |
---|
Warranty |
---|
Limited Warranty | 1 Year |
