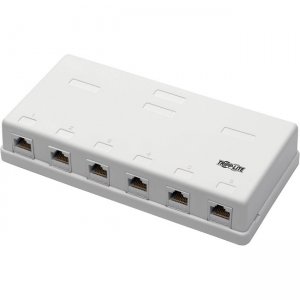

Tripp Lite N236-006-WH Mounting Box
Click to Enlarge Image

Tripp Lite N236-006-WH Mounting Box

Price $29.46

Qty Buy NowAdd to Cart

Manufacturer: Tripp Lite

Mfg Number: N236-006-WH


UPC: 037332206961

Condition: New

The N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box features six RJ45 female connectors as a safe, easy, cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape.Just snap open the top cover to terminate up to six 22-26 AWG Cat5e/6 copper cables using a standard 110 IDC punchdown tool (such as Tripp Lite's N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling. Snap the cover back on, and connect up to six Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-006-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.
Number of RJ-45 Ports6
General Information
Product TypeMounting Box
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelN236-006-WH
Product NameN236-006-WH Mounting Box
Manufacturer Part NumberN236-006-WH
Manufacturer Website Address
Environmentally FriendlyYes
Environmental CertificationRoHS
Package Contents
  • N236-006-WH Mounting Box
  • 2 x Double-sided Tape
  • 6 x Cable Ties
  • 2 x Mounting Screws
  • Quick Start Guide
Physical Characteristics
MaterialAcrylonitrile Butadiene Styrene (ABS)
Technical Information
Mount LocationSurface Mount
Mount LocationWall Mount
Limited Warranty3 Year
