Manufacturer: Tripp Lite
Mfg Number: N206-SB01-IND
SKU:
UPC: 037332206213
Condition:
New

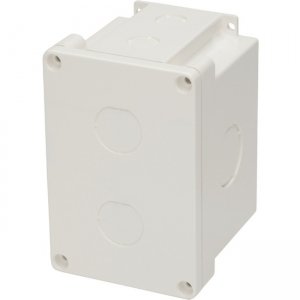

Waterproof Electrical Junction Box Recommended for Outdoor or Harsh Outdoor Environments This surface-mount Cat5e junction box is ideal for connecting Cat5e/6 networks or USB 3.0 installations in outdoor applications and other areas where protection from harsh elements is essential. It is constructed with a high-impact polycarbonate (UL94V-0) housing and flexible rubber gaskets. Two knockout holes are suitable for standard M16 cable glands (included) or M32 conduit glands. Wall-mounting hardware is included. Designed for Use with Tripp Lite Industrial-Grade Cables and Couplers The industrial junction box with two bulkhead cutouts works with Tripp Lite's N206-Series industrial Cat5e/6 patch cables and N206-BC01-IND bulkhead coupler or N206-KJ01-IND keystone jack, as well as the U325-Series industrial USB 3.0 cables and U325-000-IND bulkhead coupler (all sold separately). IP67 Rating Denotes Resistance to Dust and Water The IP67 rating means the Cat5e junction box is not only 100% protected against dust, but also able to endure immersion in one meter of water for up to 30 minutes with no damage or decline in performance, making the box ideal for basement applications. TAA-Compliant for GSA Schedule Purchases The N206-SB01-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Lifetime Warranty The N206-SB01-IND is backed by a lifetime warranty, ensuring reliability and performance. Typical Applications Connect Gigabit Ethernet networks, security cameras or digital signage in factories, warehouses, mills and other industrial environments Provide Cat6 or USB 3.0 connectivity in outdoor environments susceptible to rain, such as a stadium or outdoor arena Set up outdoor digital signage at malls, theaters and bus stops Protect IT infrastructure in basements and other areas susceptible to flooding
General Information |
---|
Product Type | Mounting Box |
---|
Brand Name | Tripp Lite |
---|
Manufacturer | Tripp Lite |
---|
Product Model | N206-SB01-IND |
---|
Product Name | N206-SB01-IND Waterproof Electrical Junction Box |
---|
Manufacturer Part Number | N206-SB01-IND |
---|
Manufacturer Website Address | http://www.tripplite.com |
---|
Miscellaneous |
---|
Environmentally Friendly | Yes |
---|
Environmental Certification | RoHS |
---|
TAA Compliant | Yes |
---|
Package Contents | - N206-SB01-IND Waterproof Electrical Junction Box
- 8 x Screws
- 4 x Screw caps
- 2 x M16 cable glands
- Quick Start Guide
|
---|
Physical Characteristics |
---|
Color | White |
---|
Material | Polycarbonate |
---|
Technical Information |
---|
Number of Gangs | 1-gang |
---|
Mount Location | Wall Mount |
---|
Mount Location | Surface Mount |
---|
Warranty |
---|
Limited Warranty | Lifetime |
