Manufacturer: Tripp Lite
Mfg Number: B126-1P0-WP-1
SKU:
UPC: 037332162854
Condition:
New

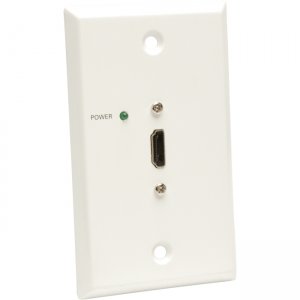

The B126-1P0-WP-1 is a receiver wallplate that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features RJ45 jacks for easy connection with patch cables; 110 punchdown not required. No external power required. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
| Interfaces/Ports |
|---|
| Number of HDMI Ports | 1 |
|---|
| Number of RJ-45 Ports | 1 |
|---|
| General Information |
|---|
| Product Type | Faceplate |
|---|
| Brand Name | Tripp Lite |
|---|
| Manufacturer | Tripp Lite |
|---|
| Product Model | B126-1P0-WP-1 |
|---|
| Product Name | HDMI Over Cat5 Passive Extender Remote Wallplate |
|---|
| Manufacturer Part Number | B126-1P0-WP-1 |
|---|
| Manufacturer Website Address | http://www.tripplite.com |
|---|
| Miscellaneous |
|---|
| Green Compliant | Yes |
|---|
| Green Compliance Certificate/Authority | RoHS |
|---|
| Package Contents | - HDMI Over Cat5 Passive Extender Remote Wallplate
- Wallplate Mounting Hardware
- Owner's Manual
|
|---|
| Technical Information |
|---|
| Mount Location | Wall Mount |
|---|
| Warranty |
|---|
| Limited Warranty | 1 Year |
|---|
