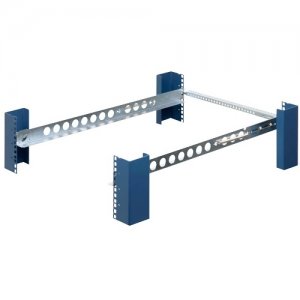

Innovation 2UKIT-109-QR 2U, Tool-less Rack Rails
Click to Enlarge Image

Innovation 2UKIT-109-QR 2U, Tool-less Rack Rails

Price $145.58

Manufacturer: Innovation

Mfg Number: 2UKIT-109-QR

SKU: 109-QR

UPC: 807648008302

Condition: New

Tool-less rack rails can be installed into racks with square holes. Rack mount equipment weighing up to 200 lbs (90.7 kgs) can be installed using a tool-less rack rail. The rack rail is 27.87" (708 mm) deep and can be installed into server racks with installation depths from 28 - 30" (711 - 762 mm) and supports equipment up to 35" (889 mm). The tool-less rack rail is primarily for 4Post racks, but it can be installed in other 2Post configurations as well with the addition of 2Post conversion kits. Center mount installations require 2POST-2UKIT and flush mount installations require 4UKIT-003
General Information
Product TypeMounting Rail
Brand NameInnovation
ManufacturerInnovation First, Inc
Product Model109-QR
Product Name2U, Tool-less Rack Rails
Manufacturer Part Number2UKIT-109-QR
Manufacturer Website Address
CompatibilitySupport Servers Computers or Equipment up to 35" (889 mm) Deep
Physical Characteristics
ColorZinc Plated
Product Information
Maximum Load Capacity75 lb
Device SupportedServer
