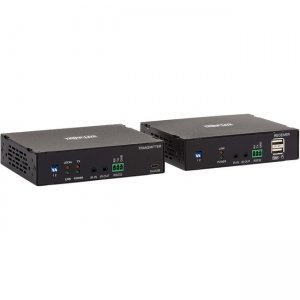

Tripp Lite B127F-1A1-MM-HH Extender Port Kit
Click to Enlarge Image

Tripp Lite B127F-1A1-MM-HH Extender Port Kit

Price: $693.41

Manufacturer: Tripp Lite

Mfg Number: B127F-1A1-MM-HH

SKU:

UPC: 037332239143

Condition: New

Transmitter/receiver kit extends a 4K HDMI signal via multimode fiber cable to a HDMI monitor up to 985 ft. away.FeaturesHDMI Extender for Digital Signage or Displaying Video in Schools or Trade Show BoothsThis complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-MM-HH extends 4K video and stereo audio signals from an HDMI source device to an HDMI monitor up to 985 feet (300 meters) away via user-supplied duplex multimode LC fiber cabling.Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 ColorThe B127F-1A1-MM-HH supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and uncompressed 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2, HDMI 2.0 and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.DIP Switches Extend Your Choice of USB, IR or RS-232 SignalsThe DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.Plug-and-Play Operation for Quick Setup and Immediate UseThe included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with HDMI cables (such as Tripp Lite's P569-Series). Then, connect a duplex multimode LC fiber cable (Tripp Lite N820-Series) to the built-in 10G transceivers on the two units. Connect an optional display to the transmitter's local HDMI output to see the image connected to the receiver up to 985 feet away.TAA-Compliant for GSA Schedule PurchasesThe B127F-1A1-MM-HH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
General Information
Product TypeVideo Transmitter/Receiver Developer Kit
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB127F-1A1-MM-HH
Product NameB127F-1A1-MM-HH Extender Port Kit
Manufacturer Part NumberB127F-1A1-MM-HH
Manufacturer Website Addresshttp://www.tripplite.com
Miscellaneous
Environmentally FriendlyYes
Environmental CertificationREACH
Environmental CertificationRoHS
TAA CompliantYes
Package Contents
  • Transmitter unit
  • Receiver unit
  • IR-IN cable
  • IR-OUT cable
  • 2 x RS-232 terminal blocks
  • 2 x External power supplies with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
  • 8 x International plug adapters (North America, Europe, Australia, United Kingdom)
  • 2 x Sets of mounting hardware
  • Owner's manual
Warranty
Limited Warranty1 Year
